Dosing Pumps

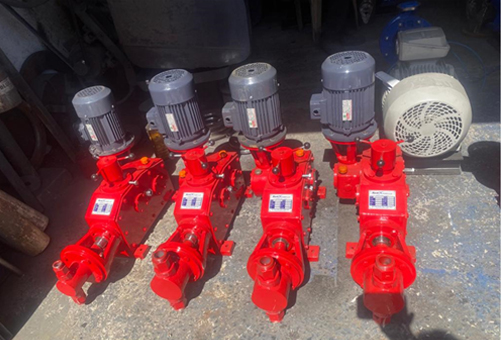

Plunger Pump

FLOW RATE : Flow rate - 0 to 8000 LPH, Higher capacity can be achieved by multiplexing head.

PRESSURE RANGE : Stainless steel head standard pressure up to 300 kg/cm2.Special head up to 1000kg/cm2.

• Stainless steel head standard pressure up to 300 kg/cm2.Special head up to 1000kg/cm2.
• High volumetric efficiency.
• High metering accuracy.
• Automatic capacity control via pneumatic or electric signal on demand or through VFD (Variable Frequency Drive).
• Low investment cost.
• Internal worm reduction gear.
• Oil bath lubrication for long life.
• Micrometric stroke adjustment while pump running or stopped.
• It requires low NPSH.
• Steady state metering accuracy (+ - 1%) of pump output.
• Simple & multiplex arrangement of pumps.

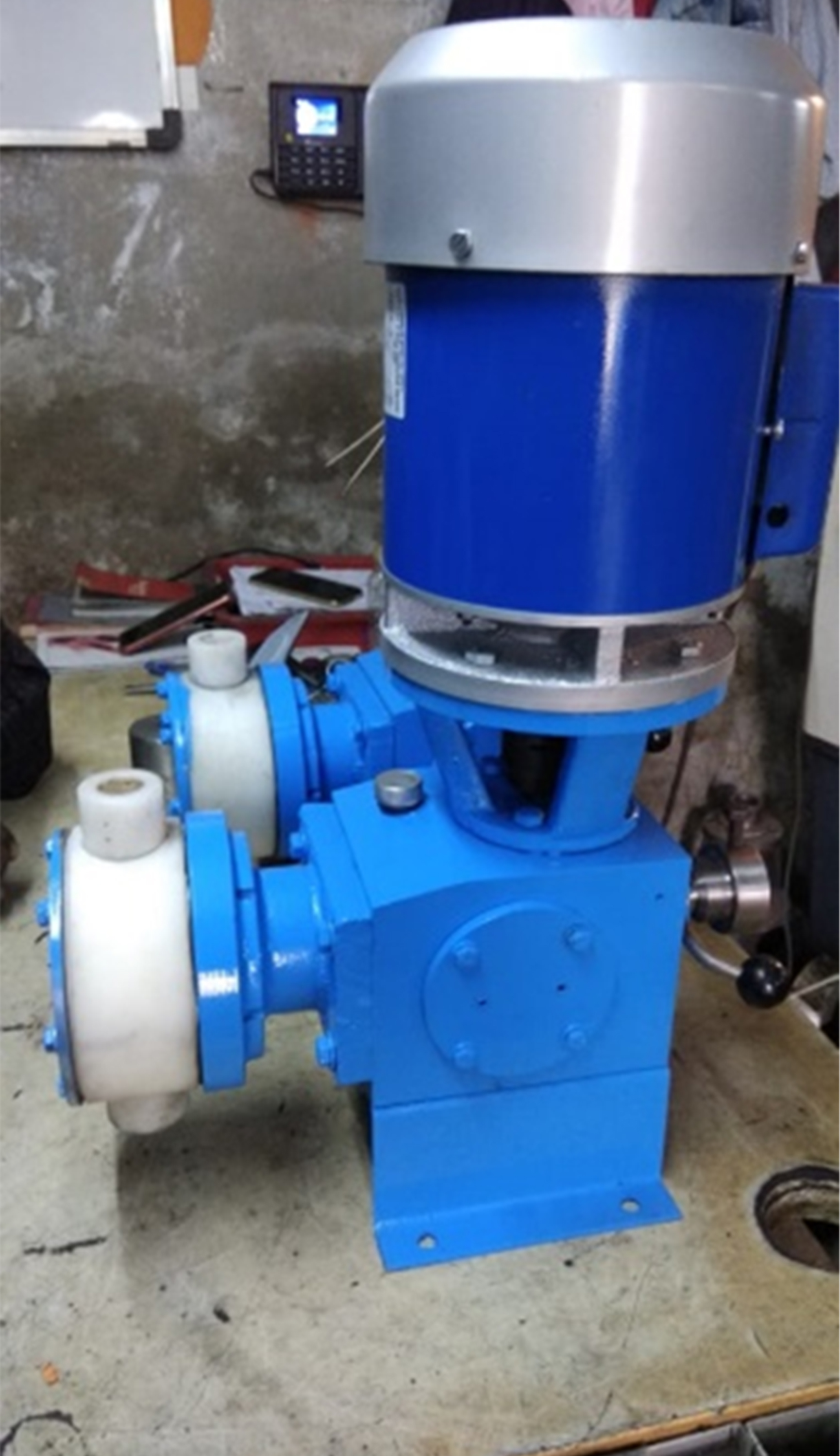

DIAPHRAGM : Superior diaphragm is designed to ensure to long life even under the most demanding applications. We are using imported quality Solid PTFE diaphragm

ELECTRONIC CIRCUIT :State of the art electronic circuit (protectively coated with epoxy) is virtually unaffected by temperature,magnetic fields & other electric disturbances.

MOC : PP, PVDF, PTFE & SS316, Alloy20

SALIENT FEATURES

• Maintenance free
• Easy to operate
• Economical
• World class next generation Dosing Pumps
• Inbuilt Air Relief Valve
• Solid PTFE Diaphragm
• Double NRV Check Valves
• Less noise
• Minimum SPM
• Optionally Digital display of SPM available

SOLENOID : High quality, hot rated solenoid is designed to dissipate heat. Capacities & pressure do not derate even over extended use
