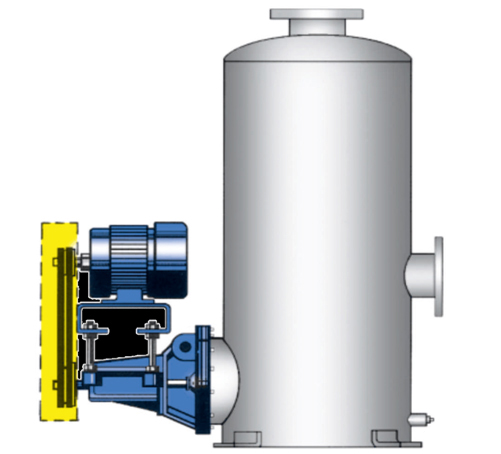

PRE-SEPARATOR PUMP

The liquid ring vacuum pumps can only take in so much water from its intake. Any increase in water from inlet pipeline effects the pumps functionality. To overcome this problem, we have developed the pre separator pumps.

Advantages of REDIX pre-separator pumps.

• Semi open impeller design – Provides positive prime even under continuously starved conditions
• Flange mounted directly onto the separator tank into the suction line for simple installation with minimum floor space
• Eliminates suction piping and the need for hydrostatic leg.
• Minimizes NPSH requirements.
• Eliminates cavitation.
• Swing out hinge option allows inspection of the pump suction or quick access to the tank interior.
• V-belt drives for performance flexibility.

Models	Capacity	Rec.Motor
RWS25	10-18M3/Hr	3-5HP
RWS65	40-90M3/Hr	5-10 HP
RWS100	100-220M3/Hr	10-20/HP
